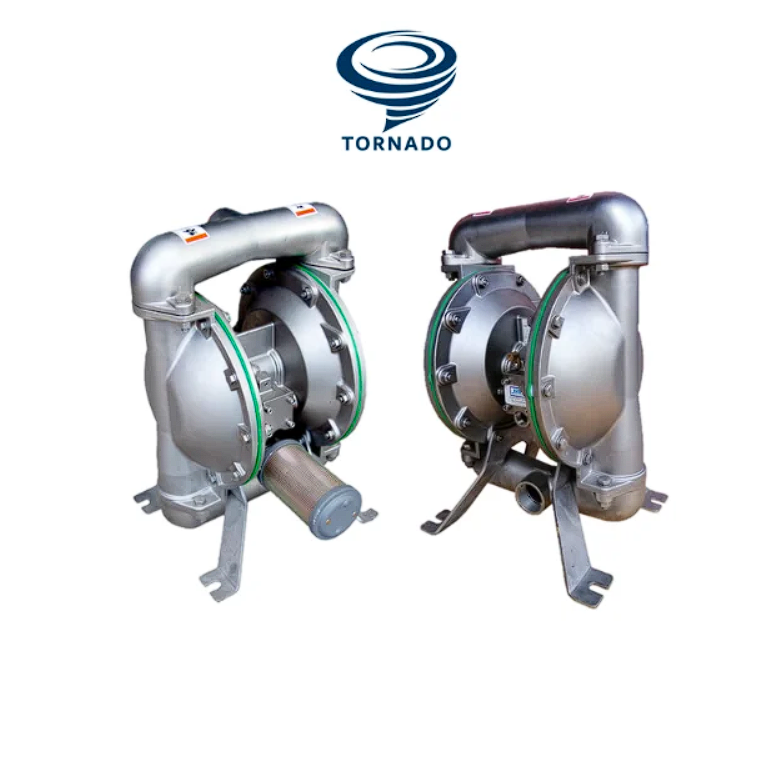

Air Operated Double Diaphragm Pump
Evol Technology’s Tornado Series Air Operated Diaphragm Pumps are ideal for a wide range of fluids, from clean to corrosive, with high viscosity and large particles. Self-priming and dry-operation capable, they offer easy maintenance and can operate without lubricated air.
| Feature | EVTD25 | EVTD40 | EVTD50 | EVTD80 |
|---|---|---|---|---|
| Product Name | EVOL Tornado Series Air Operated Double Diaphragm Pump | EVOL Tornado Series Air Operated Double Diaphragm Pump | EVOL Tornado Series Air Operated Double Diaphragm Pump | EVOL Tornado Series Air Operated Double Diaphragm Pump |
| Type | Air Operated Double Diaphragm Pump | Air Operated Double Diaphragm Pump | Air Operated Double Diaphragm Pump | Air Operated Double Diaphragm Pump |
| Brand | EVOL Technologies | EVOL Technologies | EVOL Technologies | EVOL Technologies |
| Model Number | EVTD25 | EVTD40 | EVTD50 | EVTD80 |
| Max Flow Rate | 133 L/min | 340.7 L/min | 651 L/min | 897 L/min |
| Max Working Pressure | 8.3 bar (120 psi) | 8.3 bar (120 psi) | 8.3 bar (120 psi) | 8.3 bar (120 psi) |
| Weight | 16.3 KG | 38.3 KG | 58.9 KG | 222.2 KG |
| Output Volume per Cycle | 0.6 L | 2.42 L | 5.3 L | 10.03 L |
