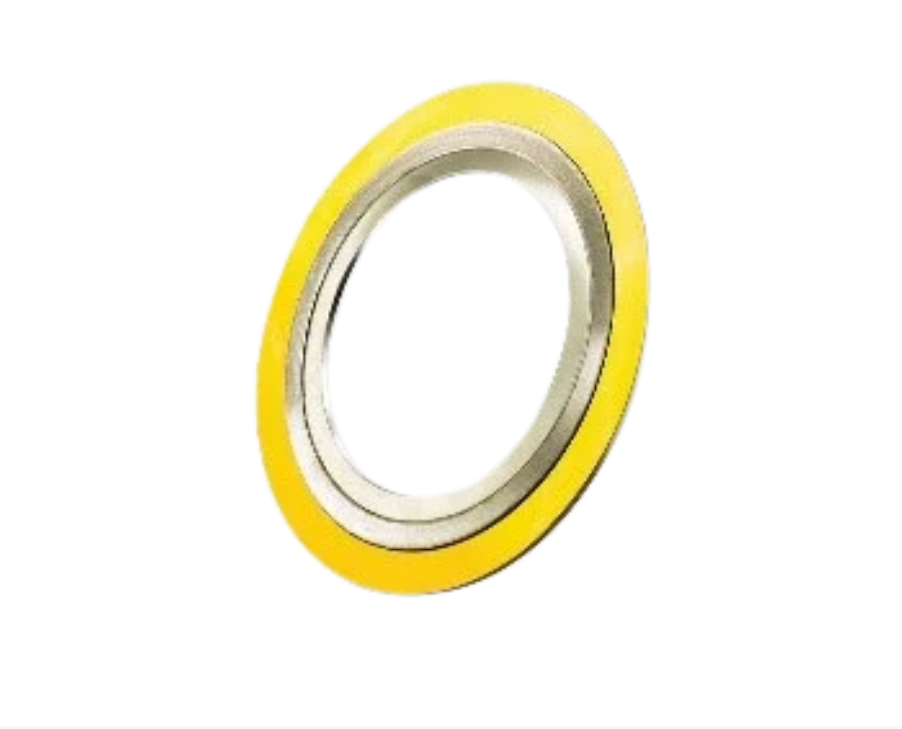

6 In CGI/WRI Spiral Wound Gasket Class 1500 316L SS
Premium 6-inch CGI/WRI spiral wound gasket, rated for Class 1500. Crafted with 316L stainless steel winding, flexible graphite filler, and reinforced with a 316L SS inner ring and carbon steel outer ring for ultimate durability and sealing performance.
| Specification | Details |
|---|---|
| Product | Spiral Wound Gasket 6" CGI/WRI Class 1500 |
| Material | 316L Stainless Steel Windings, Flexible Graphite Filler |
| Inner/Outer Ring | Carbon Steel (WRI) or 316L SS (CGI) |
| Size | 6 inch (Nominal Pipe Size) |
| Pressure Rating | Class 1500 (ANSI B16.5) |
| Type | CGI (Centering + Inner Ring) / WRI (Winding + Inner Ring) |
| Sealing Element | Spiral Wound with Graphite |
| Temperature Range | -200°C to +550°C (typical) |
| Application | High-pressure, high-temperature flange sealing |
