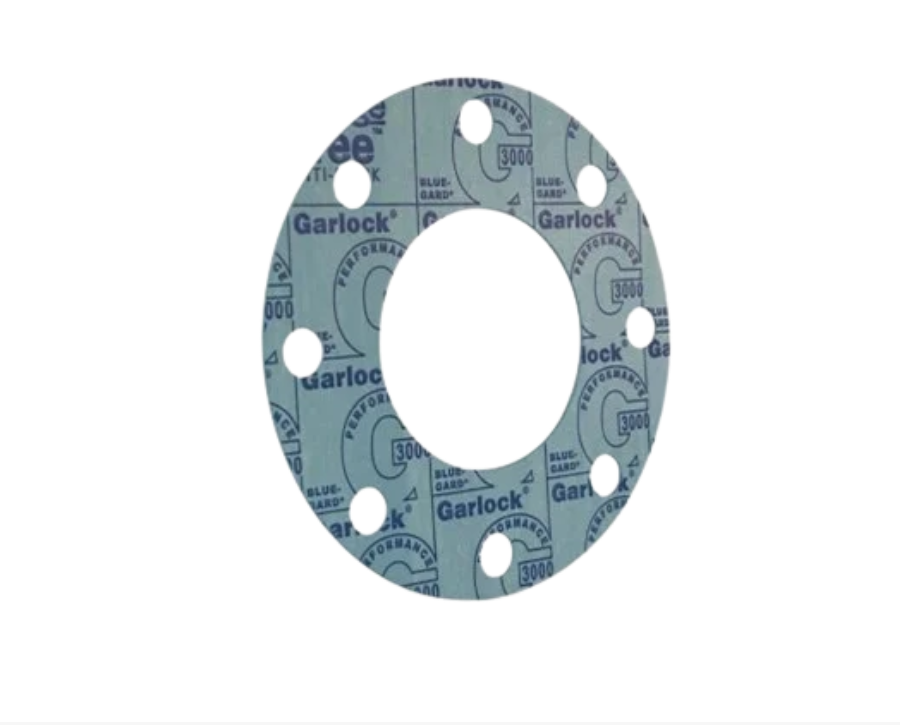

3000 1-1/2 In x 1/16 In FF Die Cut Gasket Class 150 (Non-Metallic)
This 1-1/2" die cut full face gasket is crafted from durable aramid fibers with an NBR binder, making it ideal for Class 150 applications. With a thickness of 1/16", it ensures optimal performance and improved torque retention, providing a reliable and long-lasting seal in various industrial settings.
| Specification | Details |
|---|---|
| Model | Garlock Blue-Gard 3000 Full Face Gasket |
| Material | Non-asbestos, Nitrile Butadiene Rubber (NBR) |
| Thickness | 1/16 inch (1.6 mm) |
| Size | 1-1/2 inches (38.1 mm) ID, 3 inches (76.2 mm) OD |
| Bolt Hole Configuration | 4 bolt holes, 22 mm diameter, 114.3 mm bolt circle diameter |
| Pressure Class | Class 150 (ANSI B16.5) |
| Temperature Range | -29°C to 121°C (-20°F to 250°F) |
| Applications | Suitable for use with ANSI 150 lb flanges in general industrial applications requiring a non-metallic gasket |
