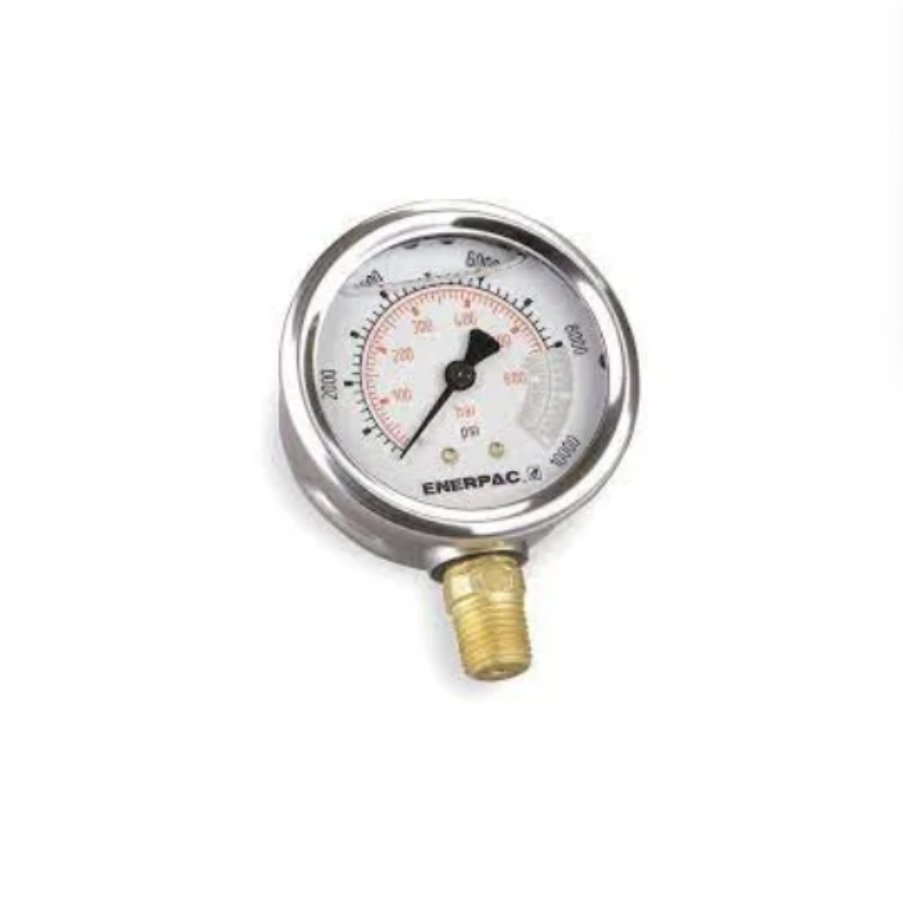

G2535L 2-1/2 In Hydraulic Pressure Gauge, 10000 PSI
This stainless steel hydraulic pressure gauge features a 2-1/2" laminated safety glass window and a 1/4" lower mount for NPTF connection. Glycerine-filled for accuracy, it has a maximum range of 10,000 PSI for reliable performance.
| Specification | Details |
|---|---|
| Model | G2535L |
| Type | Hydraulic Pressure Gauge (G-Series) |
| Pressure Range | 0 to 10,000 psi (0 to 700 bar) |
| Accuracy | ±1.5% of full scale |
| Dial Diameter | 2-1/2 inches (63 mm) |
| Mounting Type | Lower mount |
| Connection Size | 1/4" NPTF (Female) |
| Liquid Fill | Glycerin-filled for vibration and moisture protection |
| Case Material | Stainless steel |
| Lens Material | Glass |
| Graduations | 200 to 2000 psi major; 20 psi minor |
| Safety Features | Safety blow-out disk and pressure equalizing membrane |
| Recommended Accessories | Gauge snubbers or needle valves for high-cycle applications |
| Dimensions | 84 mm height x 37 mm depth (3.3" x 1.5") |
| Weight | Approximately 0.364 kg (0.8 lbs) |
| Applications | Suitable for use in hydraulic systems requiring accurate pressure measurement |
