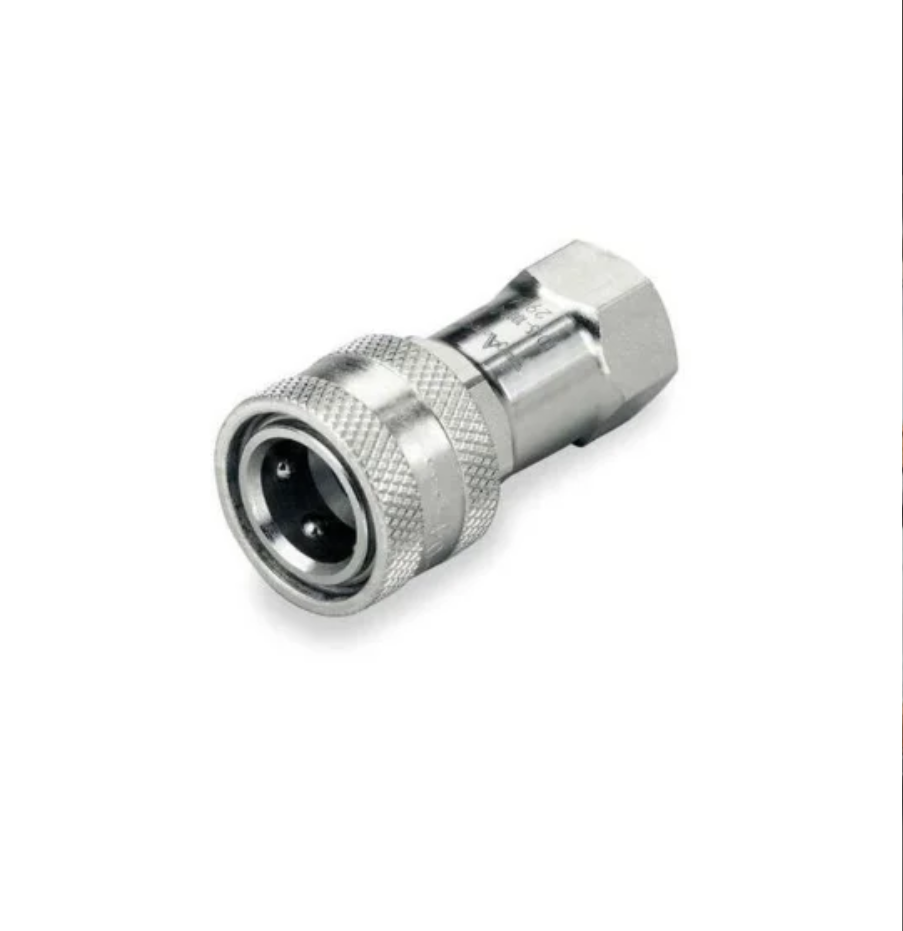

AEROQUIP FD45-1002-0404 QD Std Male/Female Pipe Valved Coupling
This zinc-plated carbon steel quick disconnect coupling features a Dash size -04 with a standard male end and a 1/4" valved female pipe end (NPT 1/4 -18 thread). Made to meet ISO 7241-1 Series B, it includes Dry-Break® valves for reliable, leak-free performance.
| Specification | Details |
|---|---|
| Model Number | FD45-1002-0404 |
| Type | Quick Disconnect (QD) Standard Male/Female Pipe Valved Coupling |
| Thread Size | 1/4"-18 NPTF (National Pipe Tapered Fuel) |
| Body Material | Zinc-plated steel |
| Seal Material | Buna-N (Nitrile) |
| Valve Design | Poppet valve with double shut-off |
| Locking Mechanism | Push-pull ball latch design |
| Maximum Operating Pressure | 5,000 psi (345 bar) |
| Maximum Flow Rate | 3.0 gpm (11.4 lpm) |
| Operating Temperature Range | -40°F to 250°F (-40°C to 121°C) |
| Vacuum Rating | 28 in Hg |
| Finish | Trivalent chromium zinc plating |
| Compliance Standards | ISO 7241/1 Series B Interchange |
| Applications | Hydraulic systems requiring quick and secure connections |
