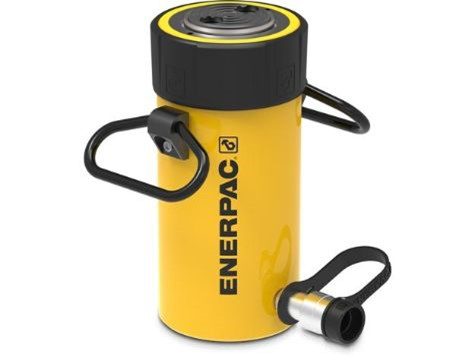

ENERPAC RC506 55.2 Ton General Purpose Hydraulic Cylinder, 6.25 In Stroke
This powerful single-acting hydraulic cylinder offers a 55.2-tonne capacity with a 6.25" stroke. Made from alloy steel, it features collar/plunger threads and a special GR2 bearing design for enhanced performance.
| Specification | Details |
|---|---|
| Model | RC506 |
| Type | Single-acting, spring return hydraulic cylinder |
| Capacity | 55.2 tons (498 kN) |
| Stroke | 6.25 inches (159 mm) |
| Cylinder Bore Diameter | 3.75 inches (95.2 mm) |
| Plunger Diameter | 3.13 inches (79.4 mm) |
| Cylinder Effective Area | 11.04 in² (71.3 cm²) |
| Collapsed Height | 11.13 inches (283 mm) |
| Extended Height | 17.38 inches (442 mm) |
| Oil Capacity (Advance) | 69.03 in³ (1131 cm³) |
| Maximum Operating Pressure | 10,000 psi (700 bar) |
| Weight | 53.2 lbs (24.1 kg) |
| Material | High-strength alloy steel |
| Finish | Baked enamel for increased corrosion resistance |
| Mounting | Collar and plunger threads; base mounting holes for easy fixturing |
| Included Accessories | CR400 coupler, dust cap, and collar thread protector |
| Plunger Type | Solid |
| Return Mechanism | Hybrid pre-tensioned spring system for faster retraction |
| Seals | High-grade polyethylene seals for low wear and long service life |
| Plunger Wiper | Reduces contamination, extending cylinder life |
| Tilt Saddle Compatibility | Optional tilt saddle with a maximum tilt angle of 5 degrees |
| Operating Position | Suitable for use in all positions |
| Compatibility | Interchangeable with optional CHM6 carrying handle |
