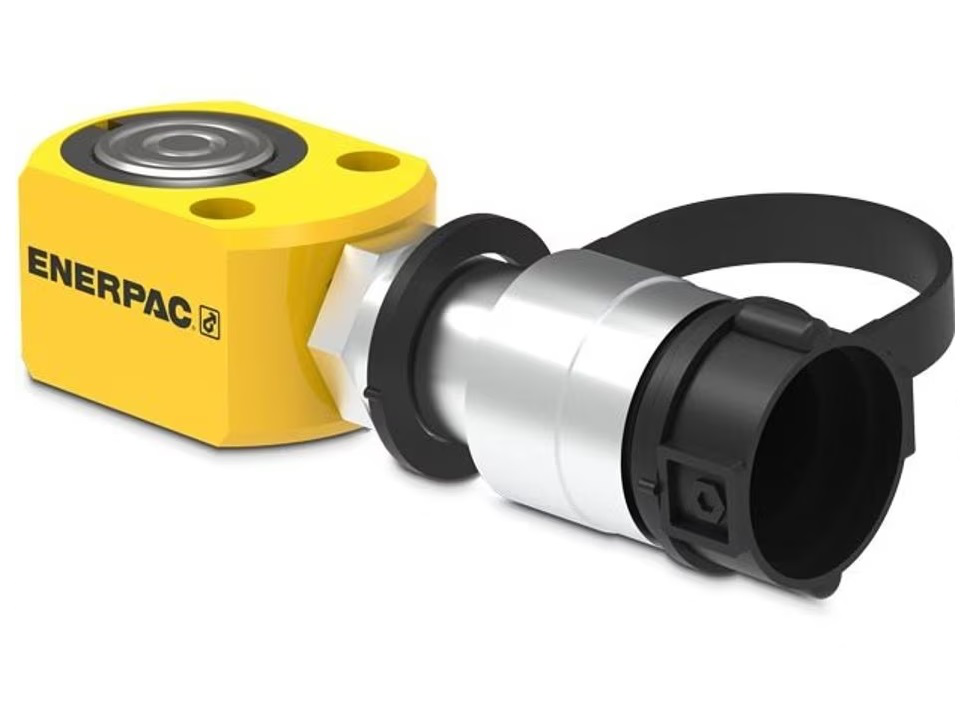

ENERPAC RSM100 11.2 Ton Low Height Hydraulic Cylinder,.44 In Stroke
This steel hydraulic cylinder from the RSM Series delivers 10 tonnes of power with a 4.4" stroke. Featuring mounting holes for easy fixturing, CR-400 couplers, and chrome-plated steel plungers, it's built for reliable, heavy-duty performance.
| Specification | Details |
|---|---|
| Model | RSM100 |
| Type | Low Height Hydraulic Cylinder |
| Cylinder Type | Single-acting, spring return |
| Capacity | 11.2 tons (101 kN) |
| Stroke | 0.44 inches (11 mm) |
| Collapsed Height | 1.63 inches (41 mm) |
| Extended Height | 2.07 inches (52 mm) |
| Outside Diameter | 2.38 inches (60 mm) |
| Plunger Diameter | 1.0 inch (25 mm) |
| Oil Capacity | 0.54 in³ (8.8 cm³) |
| Weight | 1.3 lbs (0.6 kg) |
| Material | Steel body, chrome-plated steel plunger |
| Finish | Baked enamel for corrosion resistance |
| Port Size | 3/8" NPTF |
| Mounting Holes | Yes |
| Plunger End | Grooved – requires no saddle |
| Standard Coupler Included | CR400 |
| Dust Cap | Included |
| Return Type | Spring return |
| Applications | Low-clearance lifting, positioning tasks |
