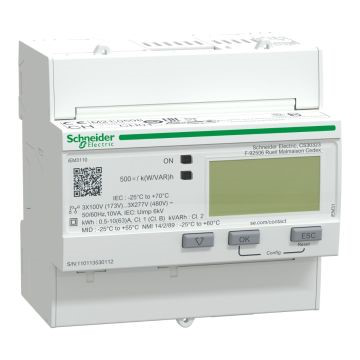

Schneider Electric LCD Energy Meter
The Acti 9 iEM3000 series offers cost-effective energy metering with full four-quadrant measurement for active and reactive energy. It provides real-time measurements (V, I, P, PF) and supports multiple tariffs for flexible billing.
| Specification | Details |
|---|---|
| Model | A9MEM3175D (Acti 9 iEM3000 Series) |
| Display Type | LCD (9-digit) |
| Number of Phases | 3-phase |
| Meter Type | Electronic |
| Measurement Range | 0 → 99,999,999.9 kWh, Maximum of 63 A |
| Accuracy Class | 1.0 (Active Energy), 2.0 (Reactive Energy) |
| Operating Voltage | 3 x 100/173 Vac (50/60 Hz) → 3 x 277/480 Vac (50/60 Hz) |
| Operating Temperature | -25°C to +55°C |
| Depth | 69 mm |
| Approvals | CE, cULus, EN 50470-3, IEC 60529, IEC 61010, IEC 61036, IEC 61557-12, IEC 62053-21, IEC 62053-23, MID Conforming to EN 50470-1, MID Conforming to EN 50470-3, UL 61010-1 |
| Country of Origin | China |
| Pulse Output | Yes (for multi-tariff applications) |
| Mounting | DIN rail mountable |
| Environmental Class | E2 (Electromagnetic), M1 (Mechanical) |
| Pollution Degree | 2 (Degree of Pollution) |
| Front Panel Protection | IP40 |
| Casing Protection | IP20 |
