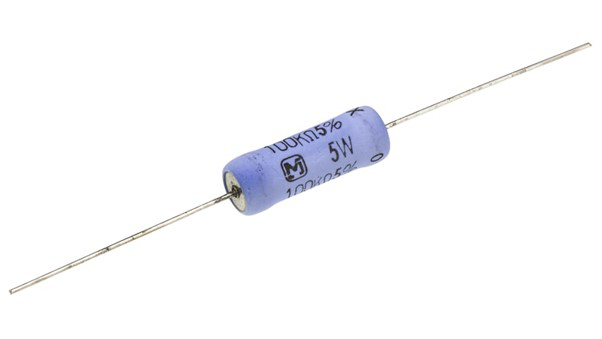

Resistors - Panasonic 100K/ohm Metal Oxide Resistor 5W 5% ERG5SJ104
The Panasonic ERG metal oxide resistor offers a compact, high-reliability solution with a 5W power rating. Built with a ceramic core and flame-retardant construction, this resistor ensures stability in high humidity and temperature conditions. It features low current noise, excellent non-linearity, and is ideal for automatic insertion in various electronic applications.
| Specification | Details |
|---|---|
| Manufacturer | Panasonic |
| Model Number | ERG5SJ104 |
| Resistance Value | 100 kΩ |
| Power Rating | 5 W (at 70°C) |
| Tolerance | ±5% |
| Voltage Rating | 500 V |
| Temperature Coefficient | ±200 ppm/°C |
| Technology | Metal Oxide |
| Package Type | Axial Leaded |
| Lead Diameter | 0.8 mm |
| Body Diameter | 8 mm |
| Body Length | 24 mm |
| Operating Temperature Range | –55°C to +155°C |
| Compliance | RoHS Compliant |
