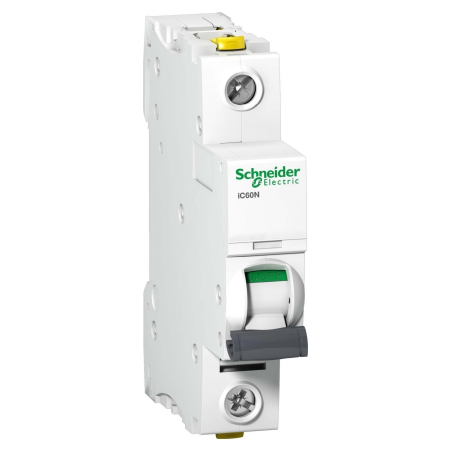

Circuit Breaker - Schneider Electric Acti 9 iC60N MCB, 1P Poles, 6A Curve C, 230V AC, 72V DC, 6 kA Breaking Capacity
The Acti 9 iC60N MCB provides reliable circuit protection against short circuits and overloads. Fully compliant with IEC/EN 60898 and IEC/EN 60947-2 standards, this circuit breaker is ideal for high inductive loads and offers robust safety for industrial and commercial applications. Features include VisiSafe technology for secure downstream circuits.
| Specification | Details |
|---|---|
| Model Number | A9F77606 |
| Brand | Schneider Electric |
| Series | Acti 9 iC60N |
| Type | Miniature Circuit Breaker (MCB) |
| Number of Poles | 1P (Single Pole) |
| Rated Current | 6 A |
| Tripping Characteristic | Type C (trips between 5–10 times rated current) |
| Rated Voltage (AC) | 230 V |
| Rated Voltage (DC) | 72 V |
| Breaking Capacity | 6 kA (at 230 V AC) |
| Mounting Type | DIN Rail Mount |
| Terminal Type | Screw Terminals |
| Tripping Mechanism | Thermal-Magnetic |
| Width | 18 mm |
| Depth | 78.5 mm |
| Height | 85 mm |
| Environmental Rating | IP20 (Protection against solid objects >12.5 mm; no protection against water) |
| Compliance | IEC 60898-1, IEC 60947-2, RoHS Compliant |
